PostgreSQL patroni 高可用 4：HAProxy和Keepalived实现读写分离

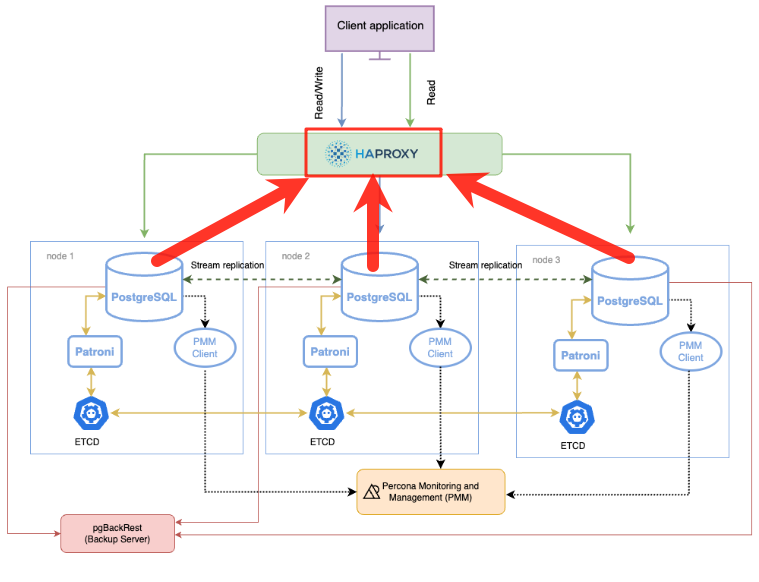

PostgreSQL ptroni的高可用架构图如下所示，本文完成如下架构图中红色标记内的HAProxy安装和配置，实际上是在每个节点都安装了HAProxy，然后用keepalived的方式，实现HAProxy自身的高可用。
需要特别说明的是：
1，HAProxy只是一个请求转发的功能，可以单独安装在一台独立的机器上，也可以跟PostgreSQL实例安装在一台机器上。
2，HAProxy并不是只能适配于Patroni，可以是任意类型的集群，比如基础的流复制，repmgr，PostgreSQL auto failover集群等等。
3，HAproxy自身也是一个单点的应用，所以其自身也需要高可用，因此本文会基于keepalived对HAproxy做高可用。
4，HAProxy在patroni高可用环境中，客户端的访问路径为：Application---》keepalived虚拟IP---》HAProxy---》patroni实例---》etcd存储---》PostgreSQL实例，可见这个链路比较长，每个组件都会带来一定的性能损耗。
图片来源于：https://docs.percona.com/postgresql/12/solutions/high-availability.html#architecture-layout
1，环境
Ubuntu08：192.168.152.115
Ubuntu09：192.168.152.116
Ubuntu10：192.168.152.117
patroni集群环境：
patroni集群环境：
root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# patronictl -c /usr/local/pgsql16/patroni/patroni.yml list+ Cluster: pg_cluster_wy_prod (7553485872297570126) ----+----+-----------+| Member | Host | Role | State | TL | Lag in MB |+----------+----------------------+---------+-----------+----+-----------+| ubuntu08 | 192.168.152.115:9000 | Replica | streaming | 5 | 0 || ubuntu09 | 192.168.152.116:9000 | Replica | streaming | 5 | 0 || ubuntu10 | 192.168.152.117:9000 | Leader | running | 5 | |+----------+----------------------+---------+-----------+----+-----------+root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#
2，AHProxy安装
版本选择

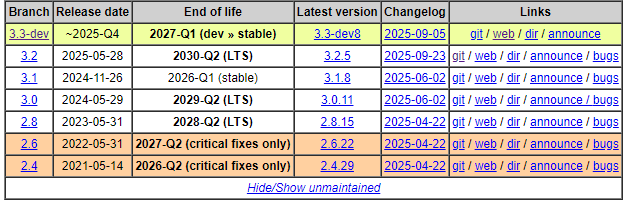

https://www.haproxy.org/，版本信息如下，这里找一个长期支持版本（LTS）3.2
下载
wget https://www.haproxy.org/download/3.2/src/haproxy-3.2.5.tar.gztar -xzvf haproxy-3.2.5.tar.gzcd haproxy-3.2.5/编译安装
#编译选项，make编译会报错，提示出编译选项root@ubuntu08:/usr/local/pg_install_package/haproxy-3.2.5# makeBuilding HAProxy without specifying a TARGET is not supported.Usage: make help # To print a full explanation. make TARGET=xxx USE_<feature>=1 # To build HAProxy.The most commonly used targets are: linux-glibc - Modern Linux with glibc linux-musl - Modern Linux with musl freebsd - FreeBSD openbsd - OpenBSD netbsd - NetBSD osx - macOS solaris - SolarisChoose the target which matches your OS the most in order togain the maximum performance out of it.Common features you might want to include in your build are: USE_OPENSSL=1 - Support for TLS encrypted connections USE_ZLIB=1 - Support for HTTP response compression USE_PCRE=1 - Support for PCRE regular expressions USE_LUA=1 - Support for dynamic processing using LuaUse 'make help' to print a full explanation of supported targetsand features, and 'make ... opts' to show the variables in usefor a given set of build options, in a reusable form.make: *** [Makefile:933: all] Error 1#编译make -j $(nproc) TARGET=linux-glibc USE_OPENSSL=1 USE_QUIC=1 USE_QUIC_OPENSSL_COMPAT=1#安装，安装位置为：/usr/local/sbinmake install
3，HAProxy配置
haproxy三个节点完全一致，不需要修改，/etc/haproxy/haproxy.conf
global log 127.0.0.1 local2 pidfile /var/run/haproxy.pid maxconn 1000 daemon defaults mode tcp retries 3 timeout client 10m timeout connect 10s timeout server 10m timeout check 10s listen stats stats uri / mode http bind *:8080 stats enable stats auth admin:admin stats refresh 10s listen pg_rw bind *:6432 option httpchk http-check expect status 200 default-server inter 3s rise 3 fall 2 on-marked-down shutdown-sessions server ubuntu05 192.168.152.115:9000 check port 8008 server ubuntu06 192.168.152.116:9000 check port 8008 server ubuntu07 192.168.152.117:9000 check port 8008 listen pg_ro bind *:6433 option httpchk GET /replica http-check expect status 200 default-server inter 3s fall 3 rise 2 on-marked-down shutdown-sessions balance roundrobin server ubuntu05 192.168.152.115:9000 check port 8008 server ubuntu06 192.168.152.116:9000 check port 8008 server ubuntu07 192.168.152.117:9000 check port 8008关于HAProxy的另一种验证方式，请参考这里：https://blog.itpub.net/70041375/viewspace-3032961/
systemctl启动文件haproxy.service
/etc/systemd/system/haproxy.service
# /etc/systemd/system/haproxy.service[Unit]Description=HAProxy Load BalancerAfter=network.target[Service]Environment="CONFIG=/etc/haproxy/haproxy.conf" "PIDFILE=/var/run/haproxy.pid"ExecStartPre=/usr/local/sbin/haproxy -f $CONFIG -c -qExecStart=/usr/local/sbin/haproxy -Ws -f $CONFIG -p $PIDFILE -dExecReload=/usr/local/sbin/haproxy -f $CONFIG -c -qExecReload=/bin/kill -USR2 $MAINPIDKillMode=mixedRestart=alwaysSuccessExitStatus=143Type=notify# The following lines leverage SystemD's sandboxing options to provide# defense in depth protection at the expense of restricting some flexibility# in your setup (e.g. placement of your configuration files) or possibly# reduced performance. See systemd.service(5) and systemd.exec(5) for further# information.# NoNewPrivileges=true# ProtectHome=true# If you want to use 'ProtectSystem=strict' you should whitelist the PIDFILE,# any state files and any other files written using 'ReadWritePaths' or# 'RuntimeDirectory'.# ProtectSystem=true# ProtectKernelTunables=true# ProtectKernelModules=true# ProtectControlGroups=true# If your SystemD version supports them, you can add: @reboot, @swap, @sync# SystemCallFilter=~@cpu-emulation @keyring @module @obsolete @raw-io[Install]WantedBy=multi-user.target启动服务
systemctl daemon-reloadsystemctl enable haproxysystemctl start haproxysystemctl status haproxy如果有异常，可以直接启动调试验证配置文件是否正常
/usr/local/sbin/haproxy -f /etc/haproxy/haproxy.conf -c -V
3，HAProxy代理使用
先从Ubuntu08：192.168.152.115开始安装，目前集群角色如下
root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# patronictl -c /usr/local/pgsql16/patroni/patroni.yml list+ Cluster: pg_cluster_wy_prod (7553485872297570126) ----+----+-----------+| Member | Host | Role | State | TL | Lag in MB |+----------+----------------------+---------+-----------+----+-----------+| ubuntu08 | 192.168.152.115:9000 | Replica | streaming | 5 | 0 || ubuntu09 | 192.168.152.116:9000 | Replica | streaming | 5 | 0 || ubuntu10 | 192.168.152.117:9000 | Leader | running | 5 | |+----------+----------------------+---------+-----------+----+-----------+root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#3.1，PostgreSQL集群的patroni状态检查
root@ubuntu08:/usr/local/pg_install_package#root@ubuntu08:/usr/local/pg_install_package# curl -s "http://192.168.152.117:8008/leader" -v 2>&1|grep '200 OK' #主节点检查正常< HTTP/1.0 200 OKroot@ubuntu08:/usr/local/pg_install_package# curl -s "http://192.168.152.117:8008/replica" -v 2>&1|grep '200 OK'root@ubuntu08:/usr/local/pg_install_package#root@ubuntu08:/usr/local/pg_install_package# curl -s "http://192.168.152.115:8008/replica" -v 2>&1|grep '200 OK' #从节点1检查正常< HTTP/1.0 200 OKroot@ubuntu08:/usr/local/pg_install_package#root@ubuntu08:/usr/local/pg_install_package# curl -s "http://192.168.152.116:8008/replica" -v 2>&1|grep '200 OK' #从节点2检查正常< HTTP/1.0 200 OKroot@ubuntu08:/usr/local/pg_install_package#3.2，启动HAproxy
root@ubuntu08:/usr/local/pg_install_package# systemctl status haproxy● haproxy.service - HAProxy Load Balancer Loaded: loaded (/etc/systemd/system/haproxy.service; disabled; vendor preset: enabled) Active: active (running) since Sun 2025-09-28 13:47:47 CST; 10s ago Process: 858613 ExecStartPre=/usr/local/sbin/haproxy -f $CONFIG -c -q (code=exited, status=0/SUCCESS) Main PID: 858635 (haproxy) Status: "Ready." Tasks: 3 (limit: 4550) Memory: 8.7M CGroup: /system.slice/haproxy.service ├─858635 /usr/local/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/run/haproxy.pid -d └─858639 /usr/local/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/run/haproxy.pid -dSep 28 13:47:47 ubuntu08 haproxy[858639]: Using epoll() as the polling mechanism.Sep 28 13:47:47 ubuntu08 haproxy[858635]: 00000000:MASTER.accept(0003)=0007 from [unix:1] ALPN=<none>Sep 28 13:47:47 ubuntu08 haproxy[858635]: [NOTICE] (858635) : Loading success.Sep 28 13:47:47 ubuntu08 haproxy[858635]: 00000000:MASTER.srvcls[0007:ffff]Sep 28 13:47:47 ubuntu08 haproxy[858635]: 00000001:MASTER.clicls[0007:ffff]Sep 28 13:47:47 ubuntu08 haproxy[858635]: 00000001:MASTER.closed[0007:ffff]Sep 28 13:47:47 ubuntu08 systemd[1]: Started HAProxy Load Balancer.Sep 28 13:47:47 ubuntu08 haproxy[858639]: [WARNING] (858639) : Server pg_rw/ubuntu08 is DOWN, reason: Layer7 wrong status, code: 503, info: "Service Unavailable", check duration: 7ms. 2 active and 0>Sep 28 13:47:47 ubuntu08 haproxy[858639]: [WARNING] (858639) : Server pg_rw/ubuntu09 is DOWN, reason: Layer7 wrong status, code: 503, info: "Service Unavailable", check duration: 1ms. 1 active and 0>Sep 28 13:47:49 ubuntu08 haproxy[858639]: [WARNING] (858639) : Server pg_ro/ubuntu10 is DOWN, reason: Layer7 wrong status, code: 503, info: "Service Unavailable", check duration: 3ms. 2 active and 0>root@ubuntu08:/usr/local/pg_install_package#3.3，HAproxy管理后台

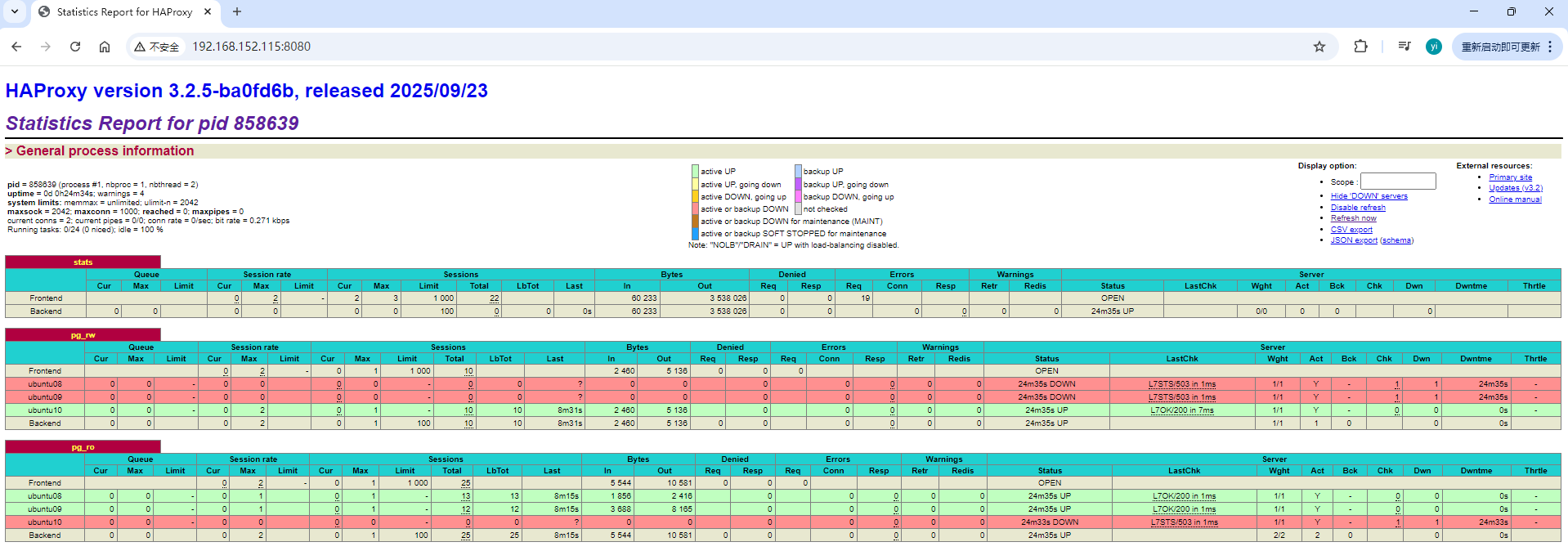

HAproxy管理后台：http://192.168.152.115:8080/
3.4，读写分离测试
patronictl -c /usr/local/pgsql16/patroni/patroni.yml list查看集群状态
root@ubuntu10:/usr/local/pg_install_package# patronictl -c /usr/local/pgsql16/patroni/patroni.yml list+ Cluster: pg_cluster_wy_prod (7553485872297570126) ----+----+-----------+| Member | Host | Role | State | TL | Lag in MB |+----------+----------------------+---------+-----------+----+-----------+| ubuntu08 | 192.168.152.115:9000 | Replica | streaming | 5 | 0 || ubuntu09 | 192.168.152.116:9000 | Replica | streaming | 5 | 0 || ubuntu10 | 192.168.152.117:9000 | Leader | running | 5 | |+----------+----------------------+---------+-----------+----+-----------+root@ubuntu10:/usr/local/pg_install_package#测试读写分析
#6432 读写端口号，一直重定向到主节点 192.168.152.117root@ubuntu10:/usr/local/pg_install_package# psql "host=192.168.152.115 port=6432 user=postgres dbname=postgres password=******" -c 'select inet_server_addr(),pg_is_in_recovery()' inet_server_addr | pg_is_in_recovery------------------+------------------- 192.168.152.117 | f(1 row)#6432 读写端口号，一直重定向到主节点 192.168.152.117root@ubuntu10:/usr/local/pg_install_package# psql "host=192.168.152.115 port=6432 user=postgres dbname=postgres password=******" -c 'select inet_server_addr(),pg_is_in_recovery()' inet_server_addr | pg_is_in_recovery------------------+------------------- 192.168.152.117 | f(1 row)#6433 只读端口号，一直重定向到主节点 192.168.152.115或者116root@ubuntu10:/usr/local/pg_install_package#root@ubuntu10:/usr/local/pg_install_package# psql "host=192.168.152.115 port=6433 user=postgres dbname=postgres password=******" -c 'select inet_server_addr(),pg_is_in_recovery()' inet_server_addr | pg_is_in_recovery------------------+------------------- 192.168.152.115 | t(1 row)root@ubuntu10:/usr/local/pg_install_package#root@ubuntu10:/usr/local/pg_install_package# psql "host=192.168.152.115 port=6433 user=postgres dbname=postgres password=******" -c 'select inet_server_addr(),pg_is_in_recovery()' inet_server_addr | pg_is_in_recovery------------------+------------------- 192.168.152.116 | t(1 row)root@ubuntu10:/usr/local/pg_install_package#root@ubuntu10:/usr/local/pg_install_package# psql "host=192.168.152.115 port=6433 user=postgres dbname=postgres password=******" -c 'select inet_server_addr(),pg_is_in_recovery()' inet_server_addr | pg_is_in_recovery------------------+------------------- 192.168.152.115 | t(1 row)root@ubuntu10:/usr/local/pg_install_package# psql "host=192.168.152.115 port=6433 user=postgres dbname=postgres password=******" -c 'select inet_server_addr(),pg_is_in_recovery()' inet_server_addr | pg_is_in_recovery------------------+------------------- 192.168.152.116 | t(1 row)root@ubuntu10:/usr/local/pg_install_package# psql "host=192.168.152.115 port=6433 user=postgres dbname=postgres password=******" -c 'select inet_server_addr(),pg_is_in_recovery()' inet_server_addr | pg_is_in_recovery------------------+------------------- 192.168.152.115 | t(1 row)
4，keepalived安装
4.1 下载和安装
首先从Ubuntu08这台主机开始安装
wget https://keepalived.org/software/keepalived-2.3.4.tar.gz#config./configure --prefix=/usr/local/#编译和安装make && make install#安装psmiscapt install -y psmisckeepalived服务文件：/etc/systemd/system/keepalived.server
[Unit]Description=Keepalive Daemon (LVS and VRRP)After=network-online.targetWants=network-online.target[Service]Type=forkingPIDFile=/run/keepalived.pidKillMode=processEnvironmentFile=/usr/local/keepalived/etc/sysconfig/keepalivedExecStart=/usr/local/keepalived/sbin/keepalived $KEEPALIVED_OPTIONSExecReload=/bin/kill -HUP $MAINPID[Install]WantedBy=multi-user.targetUbuntu 08 keepalived配置文件：/usr/local/keepalived/etc/keepalived/keepalived.conf
global_defs { router_id ubunt08 script_user root enable_script_security notification_syslog facility local1}vrrp_script chk_haproxy { script "/usr/bin/killall -0 haproxy" interval 2 weight 5 fall 30 rise 5 timeout 2}vrrp_instance VI_1 { state MASTER #抢占模式 interface ens33 virtual_router_id 51 priority 100 advert_int 1 authentication { auth_type PASS auth_pass 1111 } virtual_ipaddress { 192.168.152.119 } track_script { chk_haproxy }}
4.2 keepalived日志设置
keepalived的环境变量配置默认在 yum/apt 安装的在 /etc/sysconfig/keepalived ，源码编译安装的在/usr/local/keepalived/etc/sysconfig/keepalived
1，修改keepalived.conf配置文件global_defs { # 设置 syslog facility notification_syslog facility local1}这里的 local1 可以换成 local0 ~ local7 任意一个，但要和 rsyslog 里对应。2，编辑 /etc/rsyslog.d/keepalived.conf，增加一条规则，把 local1.* 的日志写到独立文件里：local1.* /var/log/keepalived.log3，保存后，重启 rsyslog：sudo systemctl restart rsyslog启动keepalived
systemctl daemon-reloadsystemctl enable keepalivedsystemctl start keepalivedsystemctl status keepalived
4.3 keepalived绑定虚拟IP测试
root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000 link/ether 00:0c:29:af:4a:a4 brd ff:ff:ff:ff:ff:ff inet 192.168.152.115/24 brd 192.168.152.255 scope global ens33 valid_lft forever preferred_lft forever inet 192.168.152.119/32 scope global ens33 valid_lft forever preferred_lft forever inet6 fe80::20c:29ff:feaf:4aa4/64 scope link valid_lft forever preferred_lft foreverroot@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# systemctl status keepalived● keepalived.service - Keepalive Daemon (LVS and VRRP) Loaded: loaded (/etc/systemd/system/keepalived.service; enabled; vendor preset: enabled) Active: active (running) since Sun 2025-09-28 14:46:40 CST; 2min 9s ago Process: 868947 ExecStart=/usr/local/keepalived/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS) Main PID: 868960 (keepalived) Tasks: 2 (limit: 4550) Memory: 1.8M CGroup: /system.slice/keepalived.service ├─868960 /usr/local/keepalived/sbin/keepalived -D -S 0 └─868961 /usr/local/keepalived/sbin/keepalived -D -S 0Sep 28 14:46:43 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 14:46:43 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 14:46:43 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 14:46:43 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 14:46:48 ubuntu08 Keepalived_vrrp[868961]: (VI_1) Sending/queueing gratuitous ARPs on ens33 for 192.168.152.119Sep 28 14:46:48 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 14:46:48 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 14:46:48 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 14:46:48 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 14:46:48 ubuntu08 Keepalived_vrrp[868961]: Sending gratuitous ARP on ens33 for 192.168.152.119root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#ubunt09 keepalived配置文件（修改router_id，state，priority）
global_defs { router_id ubunt09 script_user root enable_script_security notification_syslog facility local1}vrrp_script chk_haproxy { script "/usr/bin/killall -0 haproxy" interval 2 weight 5 fall 3 rise 5 timeout 2}vrrp_instance VI_1 { state BACKUP interface ens33 virtual_router_id 51 priority 90 advert_int 1 authentication { auth_type PASS auth_pass 1111 } virtual_ipaddress { 192.168.152.119 } track_script { chk_haproxy }}ubunt10 keepalived配置文件（修改router_id，state，priority）
global_defs { router_id ubunt10 script_user root enable_script_security notification_syslog facility local1}vrrp_script chk_haproxy { script "/usr/bin/killall -0 haproxy" interval 2 weight 5 fall 3 rise 5 timeout 2}vrrp_instance VI_1 { state BACKUP interface ens33 virtual_router_id 51 priority 80 advert_int 1 authentication { auth_type PASS auth_pass 1111 } virtual_ipaddress { 192.168.152.119 } track_script { chk_haproxy }}
4.4 keepalived虚拟IP飘移测试
1，Ubuntu08主节点关闭keepalived
root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# systemctl stop keepalivedroot@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000 link/ether 00:0c:29:af:4a:a4 brd ff:ff:ff:ff:ff:ff inet 192.168.152.115/24 brd 192.168.152.255 scope global ens33 valid_lft forever preferred_lft forever inet6 fe80::20c:29ff:feaf:4aa4/64 scope link valid_lft forever preferred_lft foreverroot@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#2，Ubuntu09节点接替keepalived
root@ubuntu09:/usr/local/pg_install_package/haproxy-3.2.5#root@ubuntu09:/usr/local/pg_install_package/haproxy-3.2.5# systemctl status keepalived● keepalived.service - Keepalive Daemon (LVS and VRRP) Loaded: loaded (/etc/systemd/system/keepalived.service; enabled; vendor preset: enabled) Active: active (running) since Sun 2025-09-28 16:16:21 CST; 33s ago Process: 847309 ExecStart=/usr/local/keepalived/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS) Main PID: 847324 (keepalived) Tasks: 2 (limit: 4550) Memory: 2.5M CGroup: /system.slice/keepalived.service ├─847324 /usr/local/keepalived/sbin/keepalived -D -S 0 └─847325 /usr/local/keepalived/sbin/keepalived -D -S 0Sep 28 16:16:51 ubuntu09 Keepalived_vrrp[847325]: (VI_1) Backup received priority 0 advertisementSep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: (VI_1) Receive advertisement timeoutSep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: (VI_1) Entering MASTER STATESep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: (VI_1) setting VIPs.Sep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: (VI_1) Sending/queueing gratuitous ARPs on ens33 for 192.168.152.119Sep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:16:52 ubuntu09 Keepalived_vrrp[847325]: Sending gratuitous ARP on ens33 for 192.168.152.119root@ubuntu09:/usr/local/pg_install_package/haproxy-3.2.5#root@ubuntu09:/usr/local/pg_install_package/haproxy-3.2.5# ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000 link/ether 00:0c:29:4e:c2:b0 brd ff:ff:ff:ff:ff:ff inet 192.168.152.116/24 brd 192.168.152.255 scope global ens33 valid_lft forever preferred_lft forever inet 192.168.152.119/32 scope global ens33 valid_lft forever preferred_lft forever inet6 fe80::20c:29ff:fe4e:c2b0/64 scope link valid_lft forever preferred_lft foreverroot@ubuntu09:/usr/local/pg_install_package/haproxy-3.2.5#3，Ubuntu08主节点启动keepalived，抢回虚拟ip
root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# systemctl start keepalivedroot@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000 link/ether 00:0c:29:af:4a:a4 brd ff:ff:ff:ff:ff:ff inet 192.168.152.115/24 brd 192.168.152.255 scope global ens33 valid_lft forever preferred_lft forever inet 192.168.152.119/32 scope global ens33 valid_lft forever preferred_lft forever inet6 fe80::20c:29ff:feaf:4aa4/64 scope link valid_lft forever preferred_lft foreverroot@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4# systemctl status keepalived● keepalived.service - Keepalive Daemon (LVS and VRRP) Loaded: loaded (/etc/systemd/system/keepalived.service; enabled; vendor preset: enabled) Active: active (running) since Sun 2025-09-28 16:19:07 CST; 18s ago Process: 879342 ExecStart=/usr/local/keepalived/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS) Main PID: 879356 (keepalived) Tasks: 2 (limit: 4550) Memory: 1.6M CGroup: /system.slice/keepalived.service ├─879356 /usr/local/keepalived/sbin/keepalived -D -S 0 └─879358 /usr/local/keepalived/sbin/keepalived -D -S 0Sep 28 16:19:11 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:19:11 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:19:11 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:19:11 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:19:16 ubuntu08 Keepalived_vrrp[879358]: (VI_1) Sending/queueing gratuitous ARPs on ens33 for 192.168.152.119Sep 28 16:19:16 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:19:16 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:19:16 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:19:16 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119Sep 28 16:19:16 ubuntu08 Keepalived_vrrp[879358]: Sending gratuitous ARP on ens33 for 192.168.152.119root@ubuntu08:/usr/local/pg_install_package/keepalived-2.3.4#4，Ubuntu09上的虚拟IP被抢回（Ubuntu08主节点启动keepalived，抢回虚拟ip）
oot@ubuntu09:/usr/local/pg_install_package/haproxy-3.2.5# ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000 link/ether 00:0c:29:4e:c2:b0 brd ff:ff:ff:ff:ff:ff inet 192.168.152.116/24 brd 192.168.152.255 scope global ens33 valid_lft forever preferred_lft forever inet 192.168.152.119/32 scope global ens33 valid_lft forever preferred_lft forever inet6 fe80::20c:29ff:fe4e:c2b0/64 scope link valid_lft forever preferred_lft foreverroot@ubuntu09:/usr/local/pg_install_package/haproxy-3.2.5# ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000 link/ether 00:0c:29:4e:c2:b0 brd ff:ff:ff:ff:ff:ff inet 192.168.152.116/24 brd 192.168.152.255 scope global ens33 valid_lft forever preferred_lft forever inet6 fe80::20c:29ff:fe4e:c2b0/64 scope link valid_lft forever preferred_lft foreverroot@ubuntu09:/usr/local/pg_install_package/haproxy-3.2.5#
