vue vxe-gantt 甘特图的使用
查看官网：
Github：
Gitee：
npm install [email protected] [email protected] [email protected]// ...import VxeUIAll from 'vxe-pc-ui' import 'vxe-pc-ui/es/style.css' import VxeUITable from 'vxe-table' import 'vxe-table/es/style.css' import VxeUIGantt from 'vxe-gantt' import 'vxe-gantt/lib/style.css' // ... createApp(App).use(VxeUIAll).use(VxeUITable).use(VxeUIGantt).mount('#app') // ...

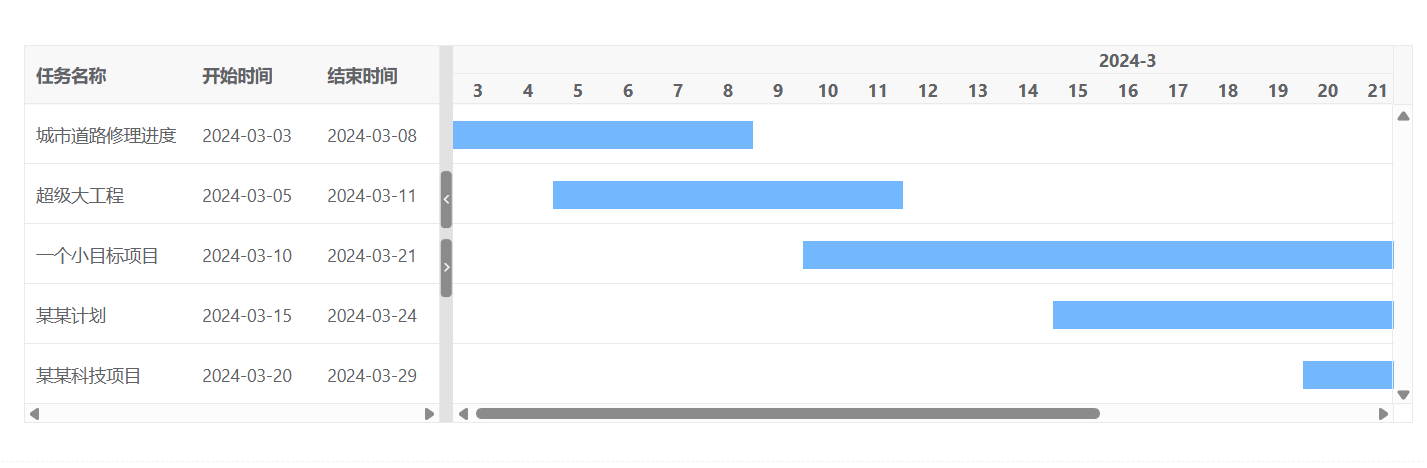

<template> <div> <vxe-gantt v-bind="ganttOptions"></vxe-gantt> </div></template><script setup>import { reactive } from 'vue'const ganttOptions = reactive({ columns: [ { field: 'name', title: '任务名称' }, { field: 'start', title: '开始时间', width: 100 }, { field: 'end', title: '结束时间', width: 100 } ], data: [ { id: 10002, name: '城市道路修理进度', start: '2024-03-03', end: '2024-03-08', progress: 10 }, { id: 10004, name: '超级大工程', start: '2024-03-05', end: '2024-03-11', progress: 15 }, { id: 10006, name: '一个小目标项目', start: '2024-03-10', end: '2024-03-21', progress: 5 }, { id: 10007, name: '某某计划', start: '2024-03-15', end: '2024-03-24', progress: 70 }, { id: 10008, name: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 } ]})</script>通过 task-bar-config.showProgress 显示任务进度

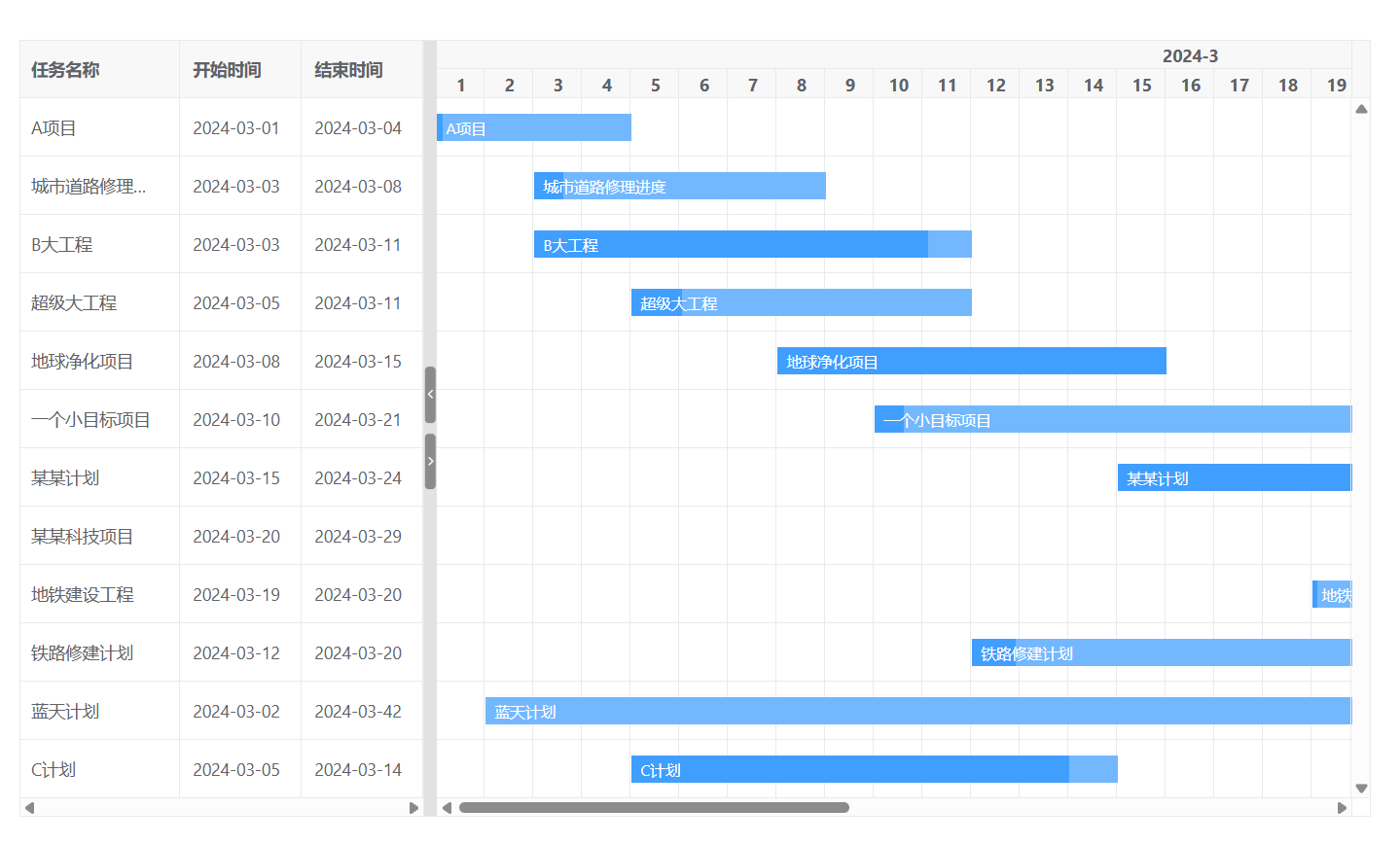

<template> <div> <vxe-gantt v-bind="ganttOptions"></vxe-gantt> </div></template><script setup>import { reactive } from 'vue'const ganttOptions = reactive({ border: true, columnConfig: { resizable: true }, taskBarConfig: { showProgress: true }, columns: [ { field: 'title', title: '任务名称' }, { field: 'start', title: '开始时间', width: 100 }, { field: 'end', title: '结束时间', width: 100 } ], data: [ { id: 10001, title: 'A项目', start: '2024-03-01', end: '2024-03-04', progress: 3 }, { id: 10002, title: '城市道路修理进度', start: '2024-03-03', end: '2024-03-08', progress: 10 }, { id: 10003, title: 'B大工程', start: '2024-03-03', end: '2024-03-11', progress: 90 }, { id: 10004, title: '超级大工程', start: '2024-03-05', end: '2024-03-11', progress: 15 }, { id: 10005, title: '地球净化项目', start: '2024-03-08', end: '2024-03-15', progress: 100 }, { id: 10006, title: '一个小目标项目', start: '2024-03-10', end: '2024-03-21', progress: 5 }, { id: 10007, title: '某某计划', start: '2024-03-15', end: '2024-03-24', progress: 70 }, { id: 10008, title: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 }, { id: 10009, title: '地铁建设工程', start: '2024-03-19', end: '2024-03-20', progress: 5 }, { id: 10010, title: '铁路修建计划', start: '2024-03-12', end: '2024-03-20', progress: 10 }, { id: 10011, title: '蓝天计划', start: '2024-03-02', end: '2024-03-42', progress: 0 }, { id: 10012, title: 'C计划', start: '2024-03-05', end: '2024-03-14', progress: 90 } ]})</script>

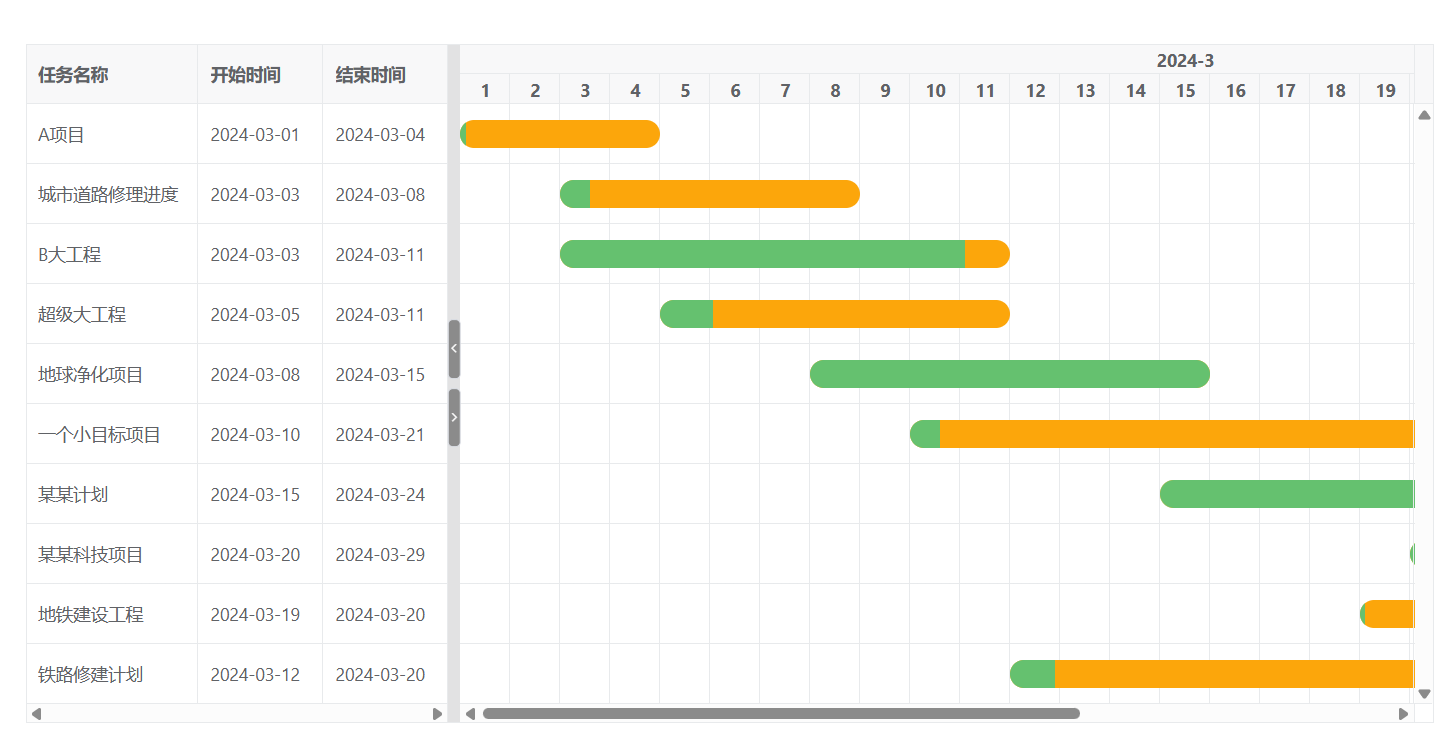

<template> <div> <vxe-gantt v-bind="ganttOptions"></vxe-gantt> </div></template><script setup>import { reactive } from 'vue'const ganttOptions = reactive({ border: true, taskBarConfig: { showProgress: true, barStyle: { round: true, bgColor: '#fca60b', completedBgColor: '#65c16f' } }, columns: [ { field: 'name', title: '任务名称' }, { field: 'start', title: '开始时间', width: 100 }, { field: 'end', title: '结束时间', width: 100 } ], data: [ { id: 10001, name: 'A项目', start: '2024-03-01', end: '2024-03-04', progress: 3 }, { id: 10002, name: '城市道路修理进度', start: '2024-03-03', end: '2024-03-08', progress: 10 }, { id: 10003, name: 'B大工程', start: '2024-03-03', end: '2024-03-11', progress: 90 }, { id: 10004, name: '超级大工程', start: '2024-03-05', end: '2024-03-11', progress: 15 }, { id: 10005, name: '地球净化项目', start: '2024-03-08', end: '2024-03-15', progress: 100 }, { id: 10006, name: '一个小目标项目', start: '2024-03-10', end: '2024-03-21', progress: 5 }, { id: 10007, name: '某某计划', start: '2024-03-15', end: '2024-03-24', progress: 70 }, { id: 10008, name: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 }, { id: 10009, name: '地铁建设工程', start: '2024-03-19', end: '2024-03-20', progress: 5 }, { id: 10010, name: '铁路修建计划', start: '2024-03-12', end: '2024-03-20', progress: 10 } ]})</script>

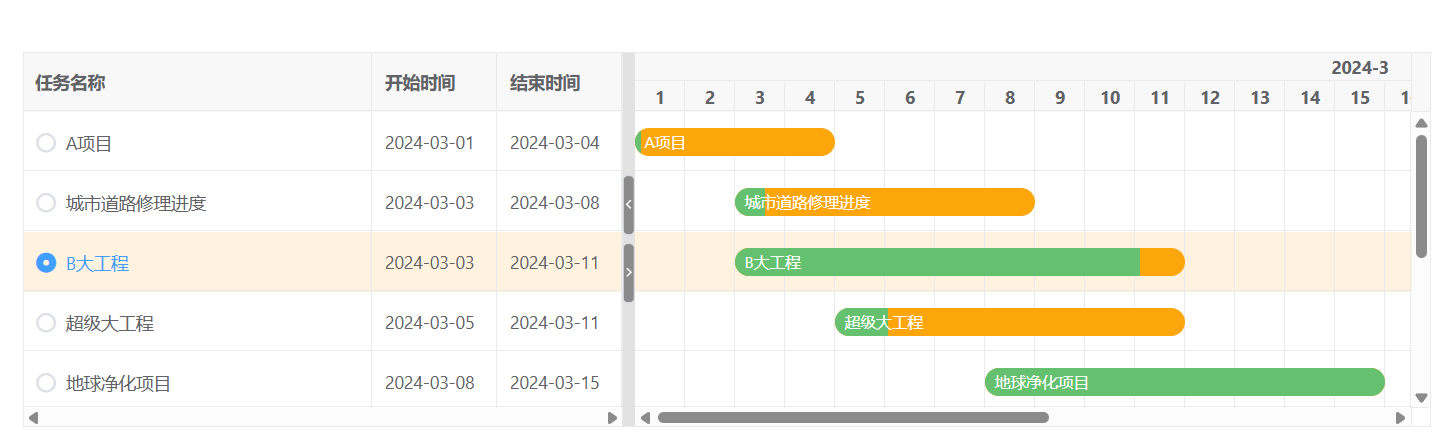

<template> <div> <vxe-gantt v-bind="ganttOptions"></vxe-gantt> </div></template><script setup>import { reactive } from 'vue'const ganttOptions = reactive({ border: true, height: 300, rowConfig: { isHover: true }, radioConfig: { labelField: 'title', highlight: true }, taskBarConfig: { showProgress: true, showContent: true, barStyle: { round: true, bgColor: '#fca60b', completedBgColor: '#65c16f' } }, taskViewConfig: { tableStyle: { width: 480 } }, columns: [ { type: 'radio', title: '任务名称' }, { field: 'start', title: '开始时间', width: 100 }, { field: 'end', title: '结束时间', width: 100 } ], data: [ { id: 10001, title: 'A项目', start: '2024-03-01', end: '2024-03-04', progress: 3 }, { id: 10002, title: '城市道路修理进度', start: '2024-03-03', end: '2024-03-08', progress: 10 }, { id: 10003, title: 'B大工程', start: '2024-03-03', end: '2024-03-11', progress: 90 }, { id: 10004, title: '超级大工程', start: '2024-03-05', end: '2024-03-11', progress: 15 }, { id: 10005, title: '地球净化项目', start: '2024-03-08', end: '2024-03-15', progress: 100 }, { id: 10006, title: '一个小目标项目', start: '2024-03-10', end: '2024-03-21', progress: 5 }, { id: 10007, title: '某某计划', start: '2024-03-15', end: '2024-03-24', progress: 70 }, { id: 10008, title: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 }, { id: 10009, title: '地铁建设工程', start: '2024-03-19', end: '2024-03-20', progress: 5 }, { id: 10010, title: '铁路修建计划', start: '2024-03-12', end: '2024-03-20', progress: 10 } ]})</script>

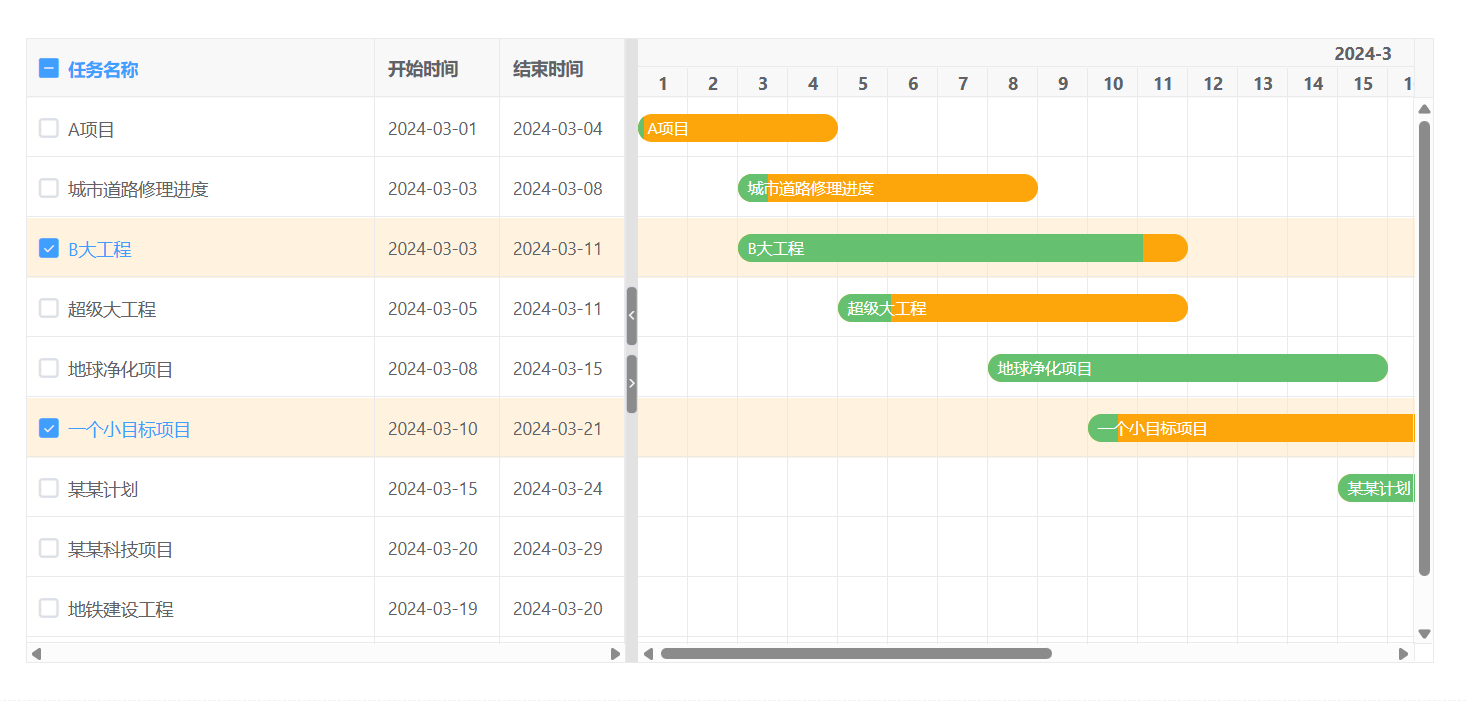

<template> <div> <vxe-gantt v-bind="ganttOptions"></vxe-gantt> </div></template><script setup>import { reactive } from 'vue'const ganttOptions = reactive({ border: true, height: 500, rowConfig: { isHover: true }, checkboxConfig: { labelField: 'title', highlight: true }, taskBarConfig: { showProgress: true, showContent: true, barStyle: { round: true, bgColor: '#fca60b', completedBgColor: '#65c16f' } }, taskViewConfig: { tableStyle: { width: 480 } }, columns: [ { type: 'checkbox', title: '任务名称' }, { field: 'start', title: '开始时间', width: 100 }, { field: 'end', title: '结束时间', width: 100 } ], data: [ { id: 10001, title: 'A项目', start: '2024-03-01', end: '2024-03-04', progress: 3 }, { id: 10002, title: '城市道路修理进度', start: '2024-03-03', end: '2024-03-08', progress: 10 }, { id: 10003, title: 'B大工程', start: '2024-03-03', end: '2024-03-11', progress: 90 }, { id: 10004, title: '超级大工程', start: '2024-03-05', end: '2024-03-11', progress: 15 }, { id: 10005, title: '地球净化项目', start: '2024-03-08', end: '2024-03-15', progress: 100 }, { id: 10006, title: '一个小目标项目', start: '2024-03-10', end: '2024-03-21', progress: 5 }, { id: 10007, title: '某某计划', start: '2024-03-15', end: '2024-03-24', progress: 70 }, { id: 10008, title: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 }, { id: 10009, title: '地铁建设工程', start: '2024-03-19', end: '2024-03-20', progress: 5 }, { id: 10010, title: '铁路修建计划', start: '2024-03-12', end: '2024-03-20', progress: 10 } ]})</script>

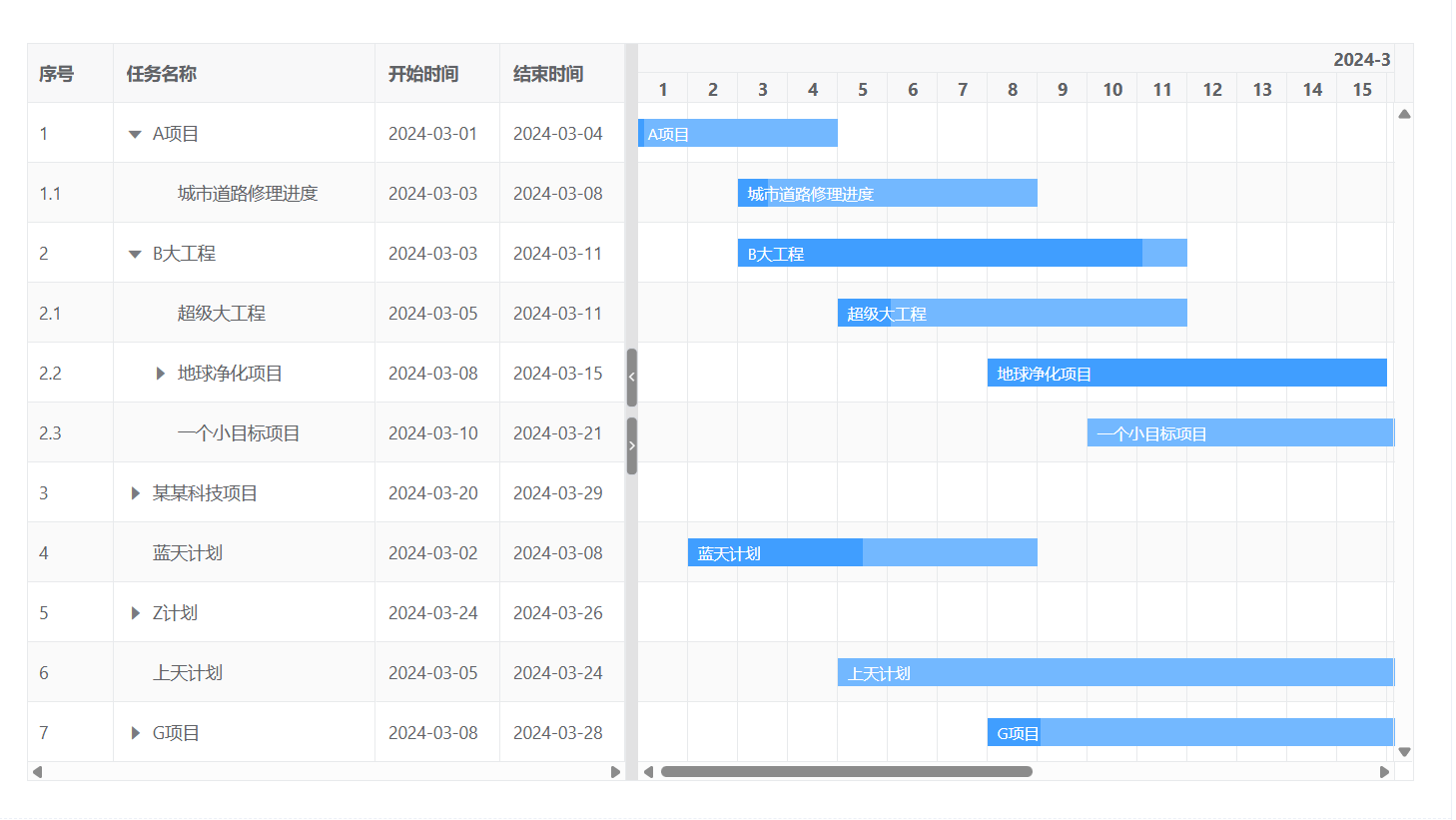

<template> <div> <vxe-gantt v-bind="ganttOptions"></vxe-gantt> </div></template><script setup>import { reactive } from 'vue'const ganttOptions = reactive({ border: true, stripe: true, treeConfig: { transform: true, rowField: 'id', parentField: 'parentId' }, taskBarConfig: { showProgress: true, showContent: true }, taskViewConfig: { tableStyle: { width: 480 } }, columns: [ { type: 'seq', width: 70 }, { field: 'title', title: '任务名称', treeNode: true }, { field: 'start', title: '开始时间', width: 100 }, { field: 'end', title: '结束时间', width: 100 } ], data: [ { id: 10001, parentId: null, title: 'A项目', start: '2024-03-01', end: '2024-03-04', progress: 3 }, { id: 10002, parentId: 10001, title: '城市道路修理进度', start: '2024-03-03', end: '2024-03-08', progress: 10 }, { id: 10003, parentId: null, title: 'B大工程', start: '2024-03-03', end: '2024-03-11', progress: 90 }, { id: 10004, parentId: 10003, title: '超级大工程', start: '2024-03-05', end: '2024-03-11', progress: 15 }, { id: 10005, parentId: 10003, title: '地球净化项目', start: '2024-03-08', end: '2024-03-15', progress: 100 }, { id: 10006, parentId: 10003, title: '一个小目标项目', start: '2024-03-10', end: '2024-03-21', progress: 0 }, { id: 10007, parentId: 10005, title: '某某计划', start: '2024-03-15', end: '2024-03-24', progress: 70 }, { id: 10008, parentId: null, title: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 }, { id: 10009, parentId: 10008, title: '地铁建设工程', start: '2024-03-19', end: '2024-03-20', progress: 5 }, { id: 10010, parentId: 10008, title: '公寓装修计划2', start: '2024-03-12', end: '2024-03-20', progress: 30 }, { id: 10011, parentId: 10008, title: '两个小目标工程', start: '2024-03-01', end: '2024-03-04', progress: 20 }, { id: 10012, parentId: null, title: '蓝天计划', start: '2024-03-02', end: '2024-03-08', progress: 50 }, { id: 10013, parentId: 10010, title: 'C大项目', start: '2024-03-08', end: '2024-03-11', progress: 10 }, { id: 10014, parentId: 10010, title: 'H计划', start: '2024-03-12', end: '2024-03-16', progress: 100 }, { id: 10015, parentId: 10011, title: '铁路修建计划', start: '2024-03-05', end: '2024-03-06', progress: 0 }, { id: 10016, parentId: 10011, title: 'D项目', start: '2024-03-06', end: '2024-03-11', progress: 10 }, { id: 10017, parentId: 10011, title: '海外改造工程', start: '2024-03-08', end: '2024-03-09', progress: 0 }, { id: 10018, parentId: null, title: 'Z计划', start: '2024-03-24', end: '2024-03-26', progress: 80 }, { id: 10019, parentId: 10018, title: 'F工程', start: '2024-03-20', end: '2024-03-28', progress: 10 }, { id: 10020, parentId: 10018, title: '投资大项目', start: '2024-03-23', end: '2024-03-28', progress: 60 }, { id: 10021, parentId: 10018, title: 'X计划', start: '2024-03-16', end: '2024-03-25', progress: 10 }, { id: 10022, parentId: null, title: '上天计划', start: '2024-03-05', end: '2024-03-24', progress: 0 }, { id: 10023, parentId: null, title: 'G项目', start: '2024-03-08', end: '2024-03-28', progress: 5 }, { id: 10024, parentId: 10023, title: '下地计划', start: '2024-03-09', end: '2024-03-16', progress: 50 } ]})</script>

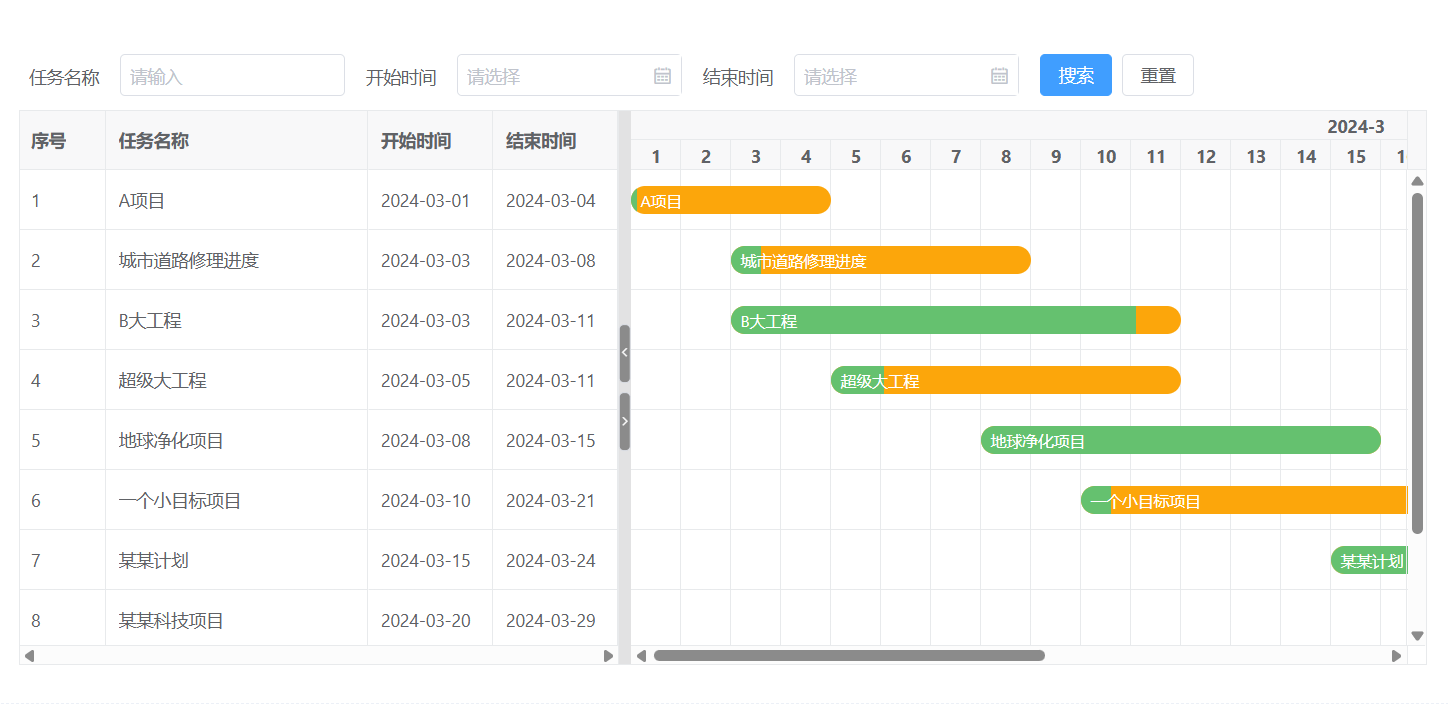

<template> <div> <vxe-gantt v-bind="ganttOptions" v-on="ganttEvents"></vxe-gantt> </div></template><script setup>import { reactive } from 'vue'const ganttOptions = reactive({ showOverflow: true, border: true, height: 500, taskBarConfig: { showProgress: true, showContent: true, barStyle: { round: true, bgColor: '#fca60b', completedBgColor: '#65c16f' } }, taskViewConfig: { tableStyle: { width: 480 } }, formConfig: { data: { title: '', start: '', end: '' }, items: [ { field: 'title', title: '任务名称', itemRender: { name: 'VxeInput' } }, { field: 'start', title: '开始时间', itemRender: { name: 'VxeDatePicker' } }, { field: 'end', title: '结束时间', itemRender: { name: 'VxeDatePicker' } }, { itemRender: { name: 'VxeButtonGroup', options: [ { type: 'submit', content: '搜索', status: 'primary' }, { type: 'reset', content: '重置' } ] } } ] }, columns: [ { type: 'seq', width: 70 }, { field: 'title', title: '任务名称' }, { field: 'start', title: '开始时间', width: 100 }, { field: 'end', title: '结束时间', width: 100 } ], data: [ { id: 10001, title: 'A项目', start: '2024-03-01', end: '2024-03-04', progress: 3 }, { id: 10002, title: '城市道路修理进度', start: '2024-03-03', end: '2024-03-08', progress: 10 }, { id: 10003, title: 'B大工程', start: '2024-03-03', end: '2024-03-11', progress: 90 }, { id: 10004, title: '超级大工程', start: '2024-03-05', end: '2024-03-11', progress: 15 }, { id: 10005, title: '地球净化项目', start: '2024-03-08', end: '2024-03-15', progress: 100 }, { id: 10006, title: '一个小目标项目', start: '2024-03-10', end: '2024-03-21', progress: 5 }, { id: 10007, title: '某某计划', start: '2024-03-15', end: '2024-03-24', progress: 70 }, { id: 10008, title: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 }, { id: 10009, title: '地铁建设工程', start: '2024-03-19', end: '2024-03-20', progress: 5 }, { id: 10010, title: '铁路修建计划', start: '2024-03-12', end: '2024-03-20', progress: 10 } ]})const ganttEvents = { formSubmit () { console.log('form submit') }, formReset () { console.log('form reset') }}</script>

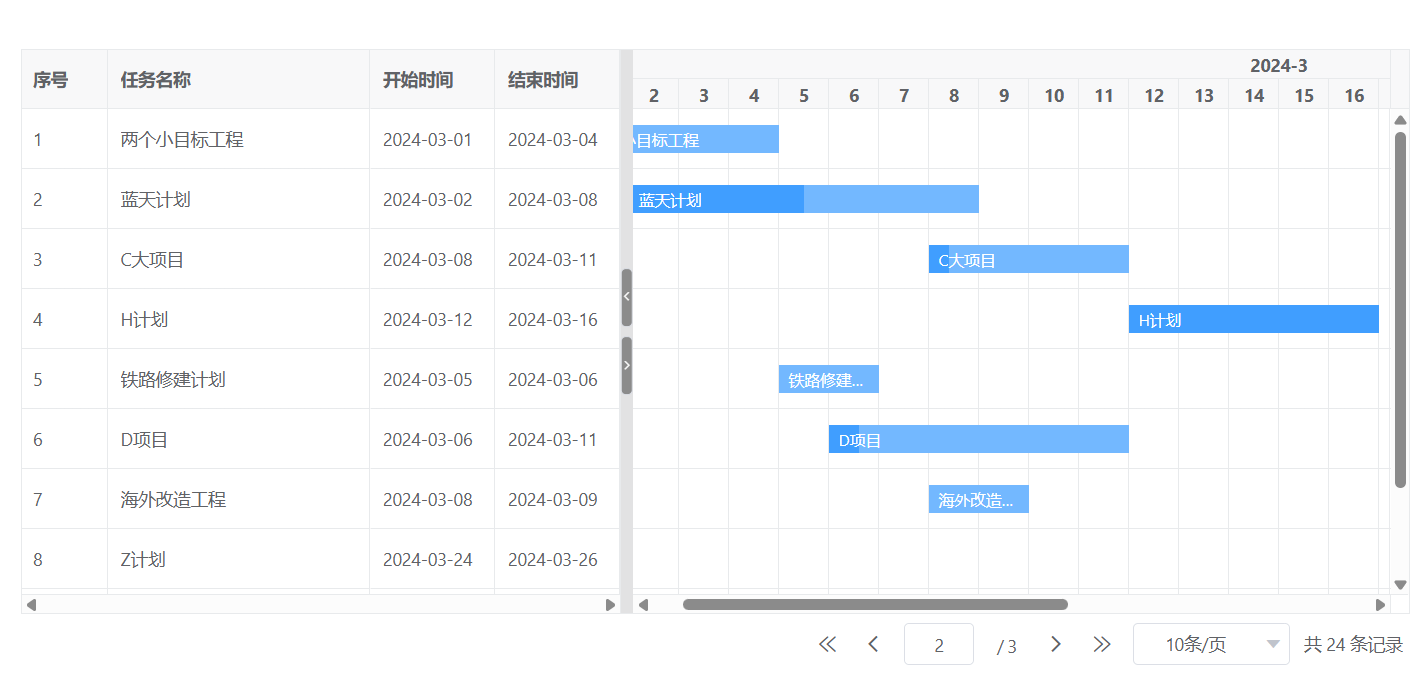

<template> <div> <vxe-gantt v-bind="ganttOptions" v-on="ganttEvents"></vxe-gantt> </div></template><script setup>import { reactive } from 'vue'const allList = [ { id: 10001, title: 'A项目', start: '2024-03-01', end: '2024-03-04', progress: 3 }, { id: 10002, title: '城市道路修理进度', start: '2024-03-03', end: '2024-03-08', progress: 10 }, { id: 10003, title: 'B大工程', start: '2024-03-03', end: '2024-03-11', progress: 90 }, { id: 10004, title: '超级大工程', start: '2024-03-05', end: '2024-03-11', progress: 15 }, { id: 10005, title: '地球净化项目', start: '2024-03-08', end: '2024-03-15', progress: 100 }, { id: 10006, title: '一个小目标项目', start: '2024-03-10', end: '2024-03-21', progress: 0 }, { id: 10007, title: '某某计划', start: '2024-03-15', end: '2024-03-24', progress: 70 }, { id: 10008, title: '某某科技项目', start: '2024-03-20', end: '2024-03-29', progress: 50 }, { id: 10009, title: '地铁建设工程', start: '2024-03-19', end: '2024-03-20', progress: 5 }, { id: 10010, title: '公寓装修计划2', start: '2024-03-12', end: '2024-03-20', progress: 30 }, { id: 10011, title: '两个小目标工程', start: '2024-03-01', end: '2024-03-04', progress: 20 }, { id: 10012, title: '蓝天计划', start: '2024-03-02', end: '2024-03-08', progress: 50 }, { id: 10013, title: 'C大项目', start: '2024-03-08', end: '2024-03-11', progress: 10 }, { id: 10014, title: 'H计划', start: '2024-03-12', end: '2024-03-16', progress: 100 }, { id: 10015, title: '铁路修建计划', start: '2024-03-05', end: '2024-03-06', progress: 0 }, { id: 10016, title: 'D项目', start: '2024-03-06', end: '2024-03-11', progress: 10 }, { id: 10017, title: '海外改造工程', start: '2024-03-08', end: '2024-03-09', progress: 0 }, { id: 10018, title: 'Z计划', start: '2024-03-24', end: '2024-03-26', progress: 80 }, { id: 10019, title: 'F工程', start: '2024-03-20', end: '2024-03-28', progress: 10 }, { id: 10020, title: '投资大项目', start: '2024-03-23', end: '2024-03-28', progress: 60 }, { id: 10021, title: 'X计划', start: '2024-03-16', end: '2024-03-25', progress: 10 }, { id: 10022, title: '上天计划', start: '2024-03-05', end: '2024-03-24', progress: 0 }, { id: 10023, title: 'G项目', start: '2024-03-08', end: '2024-03-28', progress: 5 }, { id: 10024, title: '下地计划', start: '2024-03-09', end: '2024-03-16', progress: 50 }]// 模拟前端分页const handlePageData = () => { ganttOptions.loading = true setTimeout(() => { const { pageSize, currentPage } = pagerVO pagerVO.total = allList.length ganttOptions.data = allList.slice((currentPage - 1) * pageSize, currentPage * pageSize) ganttOptions.loading = false }, 100)}const pagerVO = reactive({ total: 0, currentPage: 1, pageSize: 10})const ganttOptions = reactive({ showOverflow: true, border: true, loading: false, height: 500, pagerConfig: pagerVO, taskBarConfig: { showProgress: true, showContent: true }, taskViewConfig: { tableStyle: { width: 480 } }, columns: [ { type: 'seq', width: 70 }, { field: 'title', title: '任务名称' }, { field: 'start', title: '开始时间', width: 100 }, { field: 'end', title: '结束时间', width: 100 } ], data: []})const ganttEvents = { pageChange ({ pageSize, currentPage }) { pagerVO.currentPage = currentPage pagerVO.pageSize = pageSize handlePageData() }}handlePageData()</script>
