如何使用 vxe-table 实现穿梭框的功能，同时还能支持数据拖拽穿梭
使用 vxe-table 来实现该功能非常简单，以下的使用方法及说明
查看官网：
gitbub：
gitee：

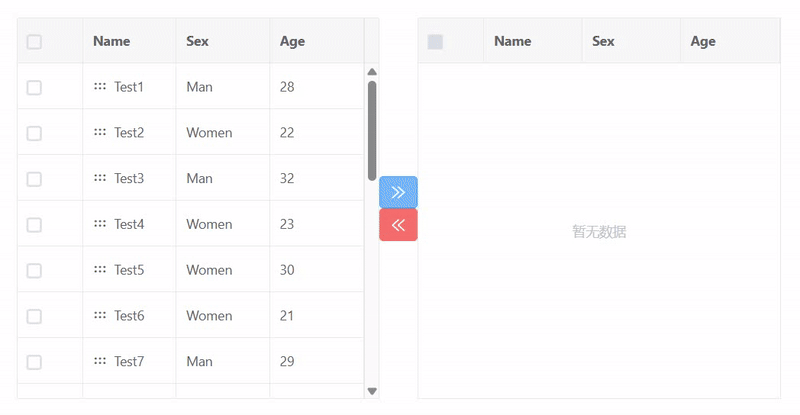

通过复选框选择来实现左右交换数据

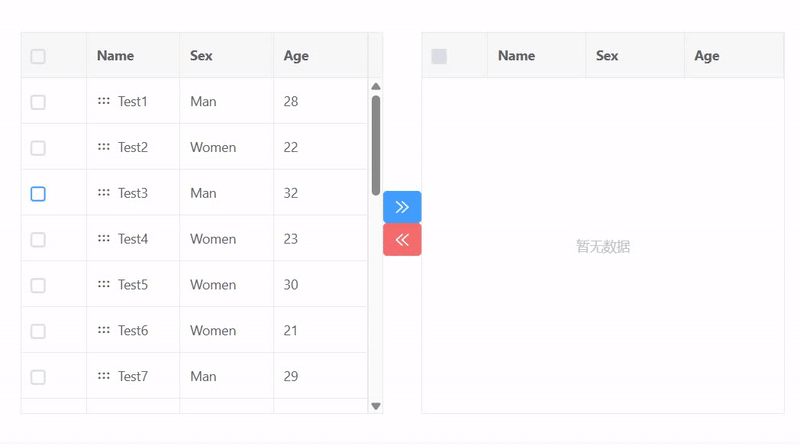

当使用拖拽穿梭数据时，需要确保数据主键不重复，通过 row-config.keyField 指定主键字段名
<template> <div> <div class="my-table-transfer"> <div class="my-table-transfer-left"> <vxe-grid ref="gridRef1" v-bind="gridOptions1"></vxe-grid> </div> <div class="my-table-transfer-handle"> <vxe-button status="primary" icon="vxe-icon-arrow-double-right" style="width: 100%;" @click="addEvent"></vxe-button> <vxe-button status="error" icon="vxe-icon-arrow-double-left" style="width: 100%;" @click="delEvent"></vxe-button> </div> <div class="my-table-transfer-right"> <vxe-grid ref="gridRef2" v-bind="gridOptions2"></vxe-grid> </div> </div> </div></template><script setup>import { ref, reactive } from 'vue'import { VxeUI } from 'vxe-pc-ui'const gridRef1 = ref()const gridRef2 = ref()const gridOptions1 = reactive({ border: true, showOverflow: true, height: '100%', rowConfig: { keyField: 'id', drag: true }, rowDragConfig: { isCrossDrag: true, isCrossTableDrag: true }, columns: [ { type: 'checkbox', width: 70 }, { field: 'name', title: 'Name', dragSort: true }, { field: 'sex', title: 'Sex' }, { field: 'age', title: 'Age' } ], data: [ { id: 10001, name: 'Test1', nickname: 'T1', role: 'Develop', sex: 'Man', age: 28, address: 'Shenzhen' }, { id: 10002, name: 'Test2', nickname: 'T2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' }, { id: 10003, name: 'Test3', nickname: 'T3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' }, { id: 10004, name: 'Test4', nickname: 'T4', role: 'Designer', sex: 'Women', age: 23, address: 'test abc' }, { id: 10005, name: 'Test5', nickname: 'T5', role: 'Develop', sex: 'Women', age: 30, address: 'Shanghai' }, { id: 10006, name: 'Test6', nickname: 'T6', role: 'Designer', sex: 'Women', age: 21, address: 'Shenzhen' }, { id: 10007, name: 'Test7', nickname: 'T7', role: 'Test', sex: 'Man', age: 29, address: 'Shenzhen' }, { id: 10008, name: 'Test8', nickname: 'T8', role: 'Develop', sex: 'Man', age: 35, address: 'test abc' }, { id: 10009, name: 'Test9', nickname: 'T9', role: 'Develop', sex: 'Man', age: 35, address: 'Shenzhen' }, { id: 100010, name: 'Test10', nickname: 'T10', role: 'Develop', sex: 'Man', age: 35, address: 'Guangzhou' }, { id: 100011, name: 'Test11', nickname: 'T11', role: 'Develop', sex: 'Man', age: 49, address: 'Guangzhou' }, { id: 100012, name: 'Test12', nickname: 'T12', role: 'Develop', sex: 'Women', age: 45, address: 'Shanghai' }, { id: 100013, name: 'Test13', nickname: 'T13', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' }, { id: 100014, name: 'Test14', nickname: 'T14', role: 'Test', sex: 'Man', age: 29, address: 'Shanghai' }, { id: 100015, name: 'Test15', nickname: 'T15', role: 'Develop', sex: 'Man', age: 39, address: 'Guangzhou' }, { id: 100016, name: 'Test16', nickname: 'T16', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' }, { id: 100017, name: 'Test17', nickname: 'T17', role: 'Test', sex: 'Man', age: 39, address: 'Shanghai' }, { id: 100018, name: 'Test18', nickname: 'T18', role: 'Develop', sex: 'Man', age: 44, address: 'Guangzhou' }, { id: 100019, name: 'Test19', nickname: 'T19', role: 'Develop', sex: 'Man', age: 39, address: 'Guangzhou' }, { id: 100020, name: 'Test20', nickname: 'T20', role: 'Test', sex: 'Women', age: 35, address: 'Guangzhou' }, { id: 100021, name: 'Test21', nickname: 'T21', role: 'Test', sex: 'Man', age: 39, address: 'Shanghai' }, { id: 100022, name: 'Test22', nickname: 'T22', role: 'Develop', sex: 'Man', age: 44, address: 'Guangzhou' } ]})const gridOptions2 = reactive({ border: true, showOverflow: true, height: '100%', rowConfig: { keyField: 'id', drag: true }, rowDragConfig: { isCrossDrag: true, isCrossTableDrag: true }, columns: [ { type: 'checkbox', width: 70 }, { field: 'name', title: 'Name', dragSort: true }, { field: 'sex', title: 'Sex' }, { field: 'age', title: 'Age' } ], data: []})const addEvent = () => { const $grid1 = gridRef1.value const $grid2 = gridRef2.value if ($grid1 && $grid2) { const selectRecords = $grid1.getCheckboxRecords() if (selectRecords.length) { $grid1.remove(selectRecords) $grid2.insertAt(selectRecords, -1) } else { VxeUI.modal.message({ content: '请勾选左侧数据', status: 'warning' }) } }}const delEvent = () => { const $grid1 = gridRef1.value const $grid2 = gridRef2.value if ($grid1 && $grid2) { const selectRecords = $grid2.getCheckboxRecords() if (selectRecords.length) { $grid2.remove(selectRecords) $grid1.insertAt(selectRecords, -1) } else { VxeUI.modal.message({ content: '请勾选右侧数据', status: 'warning' }) } }}</script><style lang="scss" scoped>.my-table-transfer { display: flex; height: 400px; overflow: hidden;}.my-table-transfer-handle { display: flex; flex-direction: column; justify-content: center; flex-shrink: 0; width: 40px;}.my-table-transfer-left,.my-table-transfer-right { width: 50%; overflow: hidden;}</style>
